Description

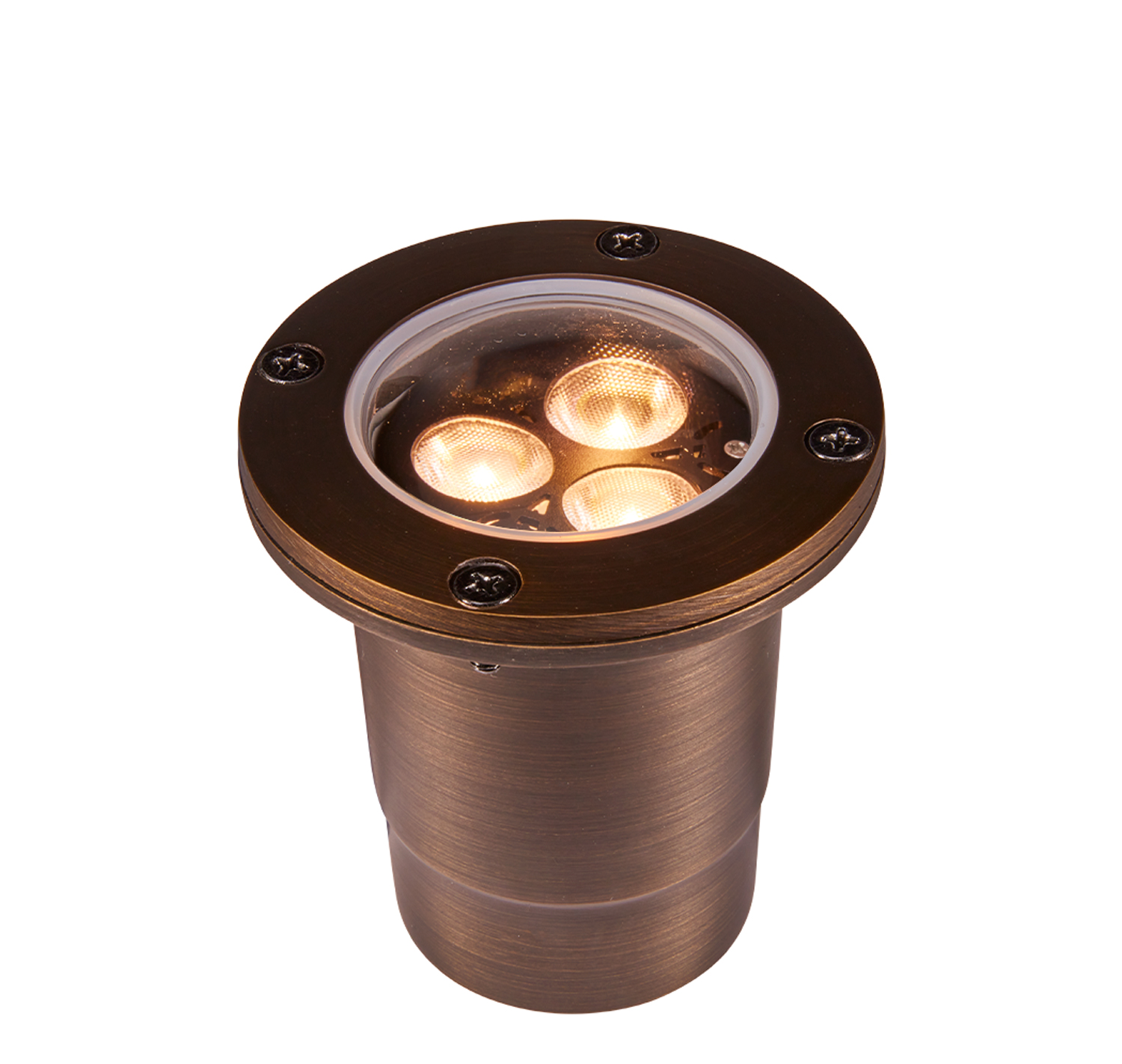

Alliance GL150 In-Ground Light - Aged Brass
Clear convex lens, for uplighting. A complete family of in-grade lighting solutions in a design that incorporates a cast brass body and lid. Select from models for uplighting, wall-washing and ground washing in one fixture series. Small exposed diameter hides easily. Ground washing models are a good alternative to path lights in areas where an exposed fixture is objectionable.
SPECIFICATIONS
Lead Wire: Industry First, double wire lead pre-connected to the fixture, 16AWG, brown
- one 25’ wire lead
- one 18” wire lead
Aiming: Lamp height adjustable on a brass track (grooves to lock settings) and a swivel mount for directional aiming of beam.
Housing: Cast brass.
Lid: Cast brass, attached with 4 color matched stainless steel screws
Socket: Spring-loaded ceramic bi-pin, with dual contacts and lamp clips
DIMENSIONS
| LID EXPOSED DIAMETER | 3.5" |
| BURIED FIXTURE DEPTH | 3.5" |
| LID THICKNESS / HEIGHT | 0.5" |
